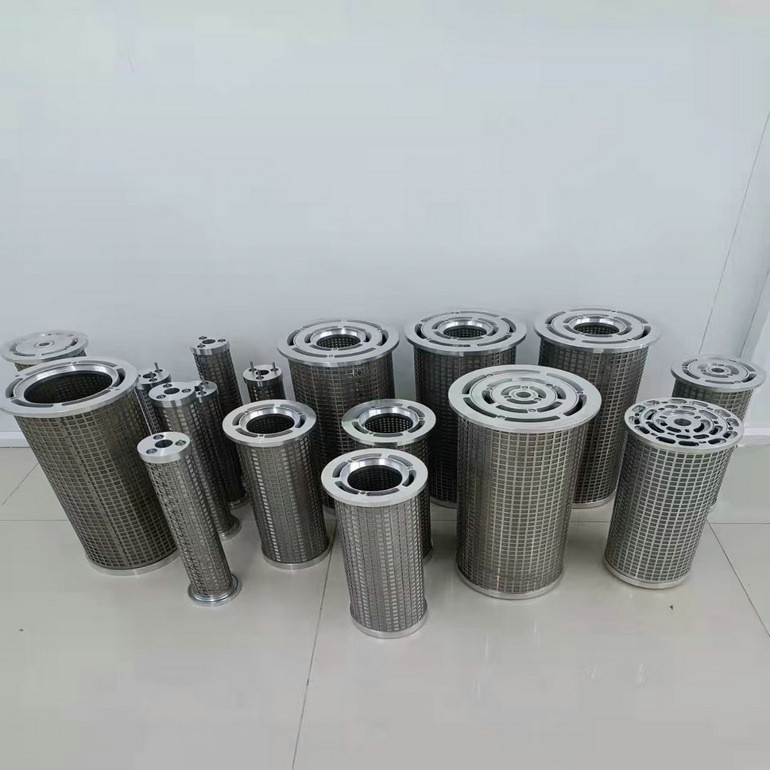

Multi-mantle element concentric circle multi-layer filter element

Multi-mantle element concentric circle multi-layer filter element

multi-mantle element concentric circle multi-layer filter element is a type of filtration technology that consists of multiple layers of filtering media arranged in concentric circles, typically made of sintered metal or other durable materials. These filters are designed to offer high efficiency and reliability for separating solid particles from liquids or gases in industrial applications.

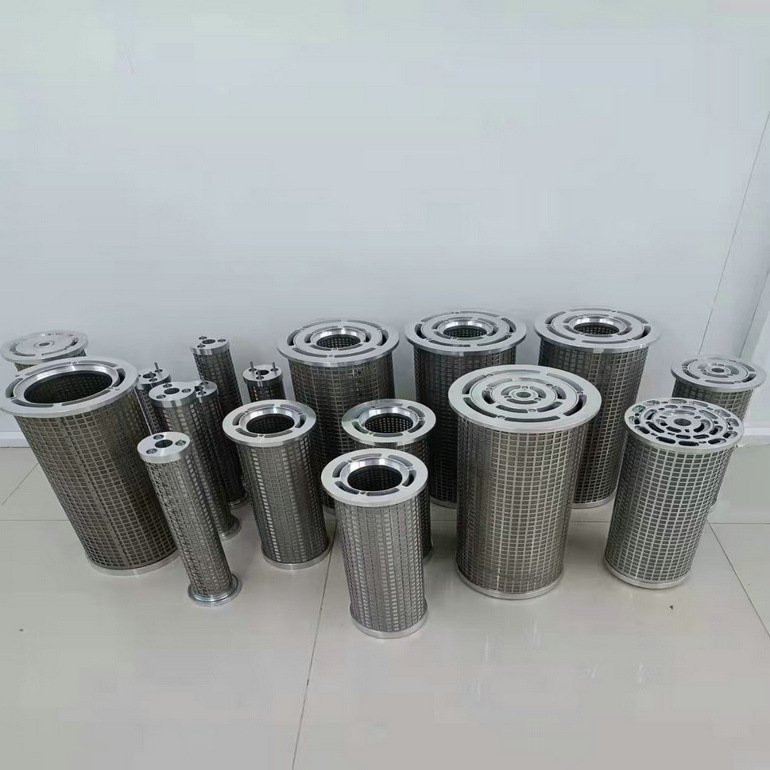

• Multi-Layer Design: The filter element consists of several layers of filtering material, which can progressively filter out particles of different sizes, improving filtration efficiency.

• Concentric Circle Arrangement: The layers are arranged concentrically, meaning that they form circular layers within each other. This arrangement increases the surface area for filtration and helps optimize the flow of the medium through the filter.

• Durability and Cleanability: Often made of metal (such as stainless steel or sintered metal), these filters can withstand high pressure and temperature, making them ideal for harsh industrial environments. They are also designed to be cleanable, which extends their service life.

• Applications:

• Industrial Filtration: Used in various industries, including petrochemical, automotive, pharmaceuticals, and food processing, for filtering liquids, gases, or slurries.

• Hydraulic and Pneumatic Systems: Used in systems where contaminants must be removed to ensure optimal functioning.

• Water Treatment: In municipal or industrial water treatment systems for removing suspended solids.

• Efficiency: The multi-layer design offers excellent performance, as each layer filters particles of different sizes. The outer layers catch larger particles, while the inner layers capture finer particles.

• Advantages:

• High filtration efficiency.

• Long service life due to cleanable design.

• Capable of handling high flow rates and harsh conditions.
